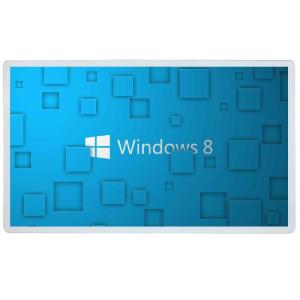

43 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
PCAP Touch Monitor Main Features
-
PCAP multi-touch panel, great touch experience
-
High-quality industrial touch panel with high resolution, full viewing angle
-
Vandal-proof and IP65 front surface water-proof PCAP touch monitor
-
Pure flat designed, durable and fashionable PCAP touch monitor
-
VGA+DVI+HDMI interfaces,USB for touch input
-
Multiple mounting options include VESA mount, horizontal or vertical brackets mount
-
Support system: XP, WIN7, WIN8, WIN10, Linux, Android
-
Other sizes are optional (7’’- 43’’)
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0430U-CA4P(P/N:KOT-430P-004) |
| Series | OT |
| Display Type | 16:9 Ratio 43" TFT-LCD |
| Active Area | 942.9*531.25 (mm) |
| Monitor Dimensions (W*H*D) | 1004*592*64.6 (mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 380cd/m2 |
| With Touch Monitor | 320cd/m2 |
| Response Time (Typ.) | 6.5 ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 3000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 24V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -10～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 50,000 Hours |
| LED Back Light Life (Typ.) | 50,000 Hours |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Touch Type | 43" Capacitive touch screens, antiglare and tempered type |
| Touch input | USB |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Regular Warranty | 1 year |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
